High Pressure Plunger pumps

High Pressure Plunger pumps Manufacturers

High pressure piston pumps called triplex plunger pump. The manifold by strong brass or stainless steel material. Oxidized aluminum alloy crankcase,connecting rods in spcial alloy with flow friction coefficient,high resistance to ware and high anti-seizure properties.The structure of designed is simple tre replace the seal and suction / delivery valves.

Commercial Plunger Pumps

JPB-N 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPB-N0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPB-N0818 8 2.1 180 2610 4 3 1450 18 7
JPB-N1120 11 2.9 200 2900 6 4 1450 18 10
JPB-N1320 13 3.4 200 2900 7 5.5 1450 18 12
JPB-N1520 15 4 200 2900 7.5 5.5 1450 18 14
JPB-N1910 19 5 100 1450 5.5 4 1450 20 14
Commercial Plunger Pumps

JPB-C 1450RPM C VERSION 24&28 HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPB-C0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPB-C0818 8 2.1 180 2610 4 3 1450 18 7
JPB-C1120 11 2.9 200 2900 6 4 1450 18 10
JPB-C1320 13 3.4 200 2900 7 5.5 1450 18 12
JPB-C1520 15 4 200 2900 7.5 5.5 1450 18 14
JPB-C1910 19 5 100 1450 5.5 4 1450 20 14
Commercial Plunger Pumps

JPC-N 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPC-N1135 11 2.9 350 5075 10 7.5 1450 18 10
JPC-N1535 15 4 350 5070 15 11 1450 18 14
JPC-N1935 19 5 350 5075 20 15 1450 20 14
JPC-N2110 21 5.5 100 1450 5.5 4 1450 25 10
JPC-N2330 23 6.1 300 4350 20 15 1450 22 14
JPC-N3010 30 7.9 100 1450 7.5 5.5 1450 25 14
JPC-N3510 35 9.2 100 1450 7.5 5.5 1450 25 16.5
Commercial Plunger Pumps

JPC-C 1450RPM C VERSION 28 HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPC-C1135 11 2.9 350 5075 10 7.5 1450 18 10
JPC-C1535 15 4 350 5075 15 11 1450 18 14
JPC-C1935 19 5 350 5075 20 15 1450 20 14
JPC-C2110 21 5.5 100 1450 5.5 4 1450 25 10
JPC-C2330 23 6.1 300 4350 20 15 1450 22 14
JPC-C3010 30 7.9 100 1450 7.5 5.5 1450 25 14
Commercial Plunger Pumps

JPD 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPD-3020 30 7.93 200 2900 15 11 1450 28 11
JPD-4020 40 10.6 200 2900 20 15 1450 28 15
JPD-5210 52 13.7 100 1450 15 11 1450 32 15
JPD-5615 56 14.8 150 2175 20 15 1450 28 21
JPD-7310 73 19.3 100 1450 20 15 1450 32 21
Commercial Plunger Pumps

JPDH 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDH-1250 12 3.17 500 7250 13 11 1450 18 11
JPDH-1650 16 4.2 500 7250 20 15 1450 18 15
JPDH-1850 18 4.8 500 7250 22 18.5 1450 16 21
JPDH-2250 22 5.8 500 7250 30 22 1450 18 21
JPDH-2850 28 7.4 500 7250 35 30 1450 20 21
Commercial Plunger Pumps

JPDS 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDS-1660 16 4.2 600 8700 24 18.5 1450 18 15
JPDS-2260 22 5.8 600 8700 34 30 1450 18 21
JPDS-2850 28 7.4 500 7250 36 30 1450 20 21
JPDS-1880 18 4.8 700 10150 30 22 1450 16 21
Industrial Plunger Pumps

JPDT 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDT07150 7 1.85 1500 21750 30 18.5 1450 10 21
JPDT10120 10 2.64 1200 17400 30 22 1450 12 21
JPDT1880 18 4.8 800 11600 36 30 1450 16 21
Industrial Plunger Pumps

JPE 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPE32 96 25.4 180 2610 40 30 1450 32 27.5
JPE36 121 32 130 1885 40 30 1450 36 27.5
JPE40 150 39.6 100 1450 40 30 1450 40 27.5
JPE45 131 34.6 100 1450 30 26 1000 45 27.5
JPE45 118 31.2 100 1450 28 24 900 45 27.5
JPE45 105 27.7 100 1450 26 22 800 45 27.5
Industrial Plunger Pumps

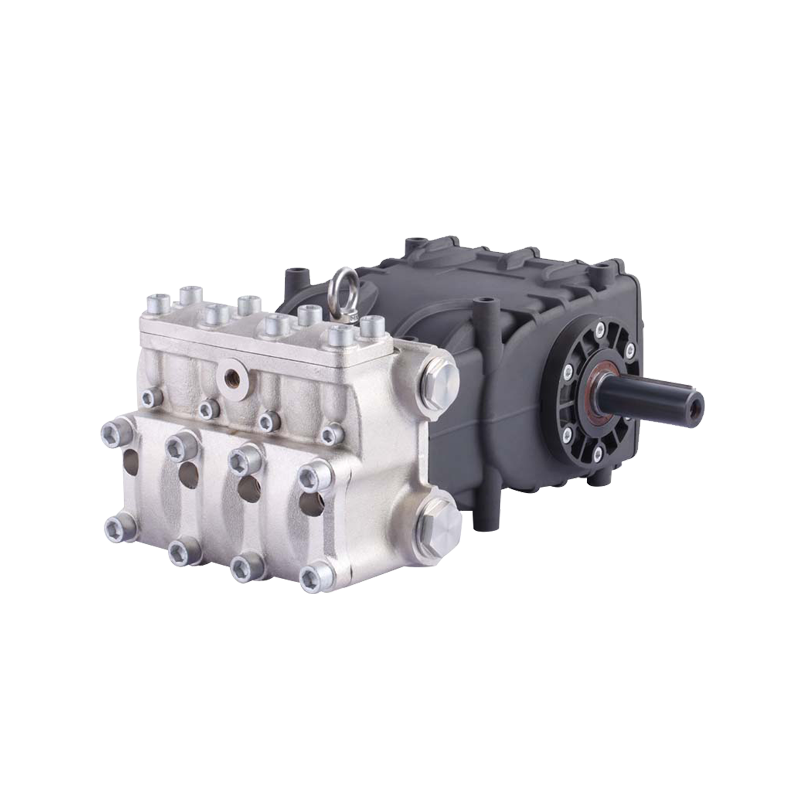

KT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
KT32 96 25.4 180 2610 40 30 1450 32 27.5
KT36 121 32 130 1885 40 30 1450 36 27.5
KT40 150 39.6 100 1450 40 30 1450 40 27.5
KT45 131 34.6 100 1450 30 26 1000 45 27.5
KT45 105 27.7 100 1450 26 22 800 45 27.5
KT45 118 31.2 100 1450 28 24 900 45 27.5
Industrial Plunger Pumps

JPES 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPES2470 24 6.3 700 10150 50 37 1450 16 27.5
JPES3060 30 7.9 600 8700 50 37 1450 18 27.5
JPES3750 37 9.9 500 7250 50 37 1450 20 27.5
JPES4540 45 11.9 400 5800 50 37 1450 22 27.5
Industrial Plunger Pumps

JPES 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPES5830 58 15.3 300 4350 40 30 1450 25 27.5
JPES7328 73 19.3 280 4060 50 37 1450 28 27.5
JPES8520 85 22.4 200 2900 40 30 1450 30 27.5
Industrial Plunger Pumps

FLS

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
FLS18 30 8.1 600 8700 48 35.5 800 18 50
FLS18 36 9.52 600 8700 55 45 1000 18 50
FLS20 47 12.4 400 5800 50 37 1000 20 50
FLS22 45 12 400 5800 48 37 800 22 50
FLS22 57 15 350 5075 50 37 1000 22 50
FLS25 75 19.3 280 4060 50 37 1000 25 50
Industrial Plunger Pumps

JPET 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPET09150 9 2.38 1500 21750 30 22 1450 10 27.5
JPET13150 13.5 3.57 1500 21750 40 30 1450 12 27.5
JPET18100 18 4.76 1000 14500 40 30 1450 14 27.5
JPET2490 24 6.34 900 13050 50 37 1450 16 27.5
JPET3075 30 7.94 750 10875 50 37 1450 18 27.5
Industrial Plunger Pumps

FLT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
FLT12 17 4.5 1500 21750 55 45 1000 12 50
FLT14 23 6.08 1000 14500 55 45 1000 14 50
FLT16 30 8.1 800 11600 55 45 1000 16 50
Industrial Plunger Pumps

GWT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
GWT12 17.5 4.63 2000 29000 101 74.5 1500 12 70
GWT14 26 6.9 1500 21750 101 74.5 1500 14 70
GWT16 34 9 1200 17400 106 78 1500 16 70
GWT18 43 11.4 900 13050 101 74.5 1500 18 70
GWT20 53 14 750 10875 103 76 1500 20 70
GWT22 64 16.9 600 8700 100 73 1500 22 70
GWT25 76 20.1 500 7250 110 80 1500 25 70
Industrial Plunger Pumps

JPF 1000RPM N VERSION 40MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPF32 120 31.7 160 2320 50 37 1000 32 50
JPF36 152 40.1 130 1885 50 37 1000 36 50
JPF40 188 49.6 110 1595 50 37 1000 40 50
JPF45 238 63.1 80 1160 50 37 1000 45 50
Industrial Plunger Pumps

JPKF 1000RPM N VERSION 40MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPKF28 92 24.3 210 3045 50 37 1000 28 50
JPKF30 106 28 200 2900 50 37 1000 30 50
JPKF36 122 32.2 160 2320 50 37 800 36 50
JPKF36 137 36.2 140 2030 50 37 900 36 50
JPKF36 152 40.1 130 1885 50 37 1000 36 50
JPKF40 188 49.6 110 1595 50 37 1000 40 50
JPKF45 238 63.1 80 1160 50 37 1000 40 50
Industrial Plunger Pumps

PFH

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
PFH28

111

29.3

250

3625

75

55

1500

28

50

PFH28

112

29.6

250

3625

75

55

1800

28

50

PFH30

76

20.1

500

7250

110

80

1500

25

70

PFH30

76

20.1

500

7250

110

80

1500

25

70

PFH36

76

20.1

500

7250

110

80

1500

25

70

PFH36

76

20.1

500

7250

110

80

1500

25

70

PFH40

76

20.1

500

7250

110

80

1500

25

70

PFH40

76

20.1

500

7250

110

80

1500

25

70

Industrial Plunger Pumps

JPMW N VERSION 50MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPMW32 135 35.7 300 4350 110 80 1500/1800/2200 32 70
JPMW36 171 45.2 240 2480 111 80 1500/1800/2200 36 70
JPMW40 211 55.7 210 3045 120 87 1500/1800/2200 40 70
JPMW45 267 70.5 155 2248 112 80 1500/1800/2200 45 70
JPMW50 330 87.2 125 1813 112 82 1500/1800/2200 50 70
JPMW55 399 105.4 100 1450 108 79 1500/1800/2200 52 70
Industrial Plunger Pumps

JPMV N VERSION 50MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPMV32 168 44.9 250 3625 113 83 1000 32 70
JPMV36 213 56.2 200 2900 113 83 1000 36 70
JPMV40 263 69.5 160 2320 113 83 1000 40 70
JPMV45 333 88 100 1450 85 65 1000 45 70
JPMV50 330 87.2 130 1885 114 84 1000 50 70
JPMV55 399 105.4 100 1450 108 79 1000 52 70
Stainless Steel Plunger pumps

JPBF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPBF-N0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPBF-N0810 8 2.1 100 1450 2 1.5 1450 18 7
JPBF-N1110 11 2.9 100 1450 3 2.2 1450 18 10
JPBF-N1310 13 3.4 100 1450 4 2.2 1450 18 14
JPBF-N1510 15 4 100 1450 4 3 1450 18 14
Stainless Steel Plunger pumps

JPBF 1450RPM C VERSION 24MM/28MM HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPBF-C0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPBF-C0810 8 2.1 100 1450 2 1.5 1450 18 7
JPBF-C1110 11 2.9 100 1450 3 2.2 1450 18 10
JPBF-C1310 13 3.4 100 1450 4 2.2 1450 18 12
JPBF-C1510 15 4 100 1450 4 3 1450 18 14
Stainless Steel Plunger pumps

JPCF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPCF-N1510 15 4 100 1450 3 4 1450 18 14
JPCF-N1910 19 5.02 100 1450 5.5 4 1450 20 14
JPCF-N2310 23 6.08 100 1450 5.5 4 1450 22 14
JPCF-N3010 30 7.9 100 1450 7.5 5.5 1450 25 14
JPCF-N3510 35 9.25 100 1450 9 7.5 1450 25 16.5
Stainless Steel Plunger pumps

JPCF 1450RPM C VERSION 28MM HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPCF-C1510 15 4 100 1450 4 3 1450 18 14
JPCF-C1910 19 5.02 100 1450 5.5 4 1450 20 14
JPCF-C2310 23 6.08 100 1450 5.5 4 1450 22 14
JPCF-C3010 30 7.9 100 1450 7.5 5.5 1450 25 14
JPCF-C3510 35 9.5 100 1450 9 7.5 1450 25 16.5
Stainless Steel Plunger pumps

JPDF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDF-N4010 40 10.6 100 1450 10 7.5 1450 28 15
JPDF-N5610 56 14.8 100 1450 15 11 1450 28 21
JPDF-N7010 70 18.5 100 1450 20 15 1450 32 21
Stainless Steel Plunger pumps

JPEF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPEF32 96 25.4 180 2610 40 30 1450 32 27.5
JPEF36 121 32 130 1885 40 30 1450 36 27.5
JPEF40 150 39.6 100 1450 40 30 1450 40 27.5
Stainless Steel Plunger pumps

JPFF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPFF32 120 31.7 160 2320 50 37 1000 32 50
JPFF36 152 40.1 130 1885 50 37 1000 36 50
JPFF40 188 49.6 110 1595 50 37 1000 40 50
Stainless Steel Plunger pumps

JPGF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPGF32 168 44.9 250 3625 113 83 1000 32 70
JPGF36 213 56.2 200 2900 113 83 1000 36 70
JPGF40 263 69.5 160 2320 113 83 1000 40 70
JPGF45 333 88 100 1450 85 65 1000 45 70
JPGF50 330 87.2 130 1885 114 84 1000 50 70
JPGF55 399 105.4 100 1450 108 79 1000 52 70
Stainless Steel Plunger pumps

JPGWF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPGWF32 135 35.7 300 4350 110 80 1500-1:1.8 32 70
JPGWF36 171 45.2 240 3480 110 80 1500-1:1.8 36 70
JPGWF40 211 55.7 210 3045 120 87 1500-1:1.8 40 70
JPGWF45 267 70.5 155 2248 112 81 1500--1:1.83 45 70
JPGWF50 330 87.2 125 1813 112 81 1500--1:1.83 50 70
JPGWF55 399 105.4 100 1450 108 79 1500--1:1.83 52 70
Leading Manufacturer of high pressure plunger pumps

Ningbo Brilliant

Ningbo Brilliant Machinery Co., Ltd. was founded in 2019, located in Haishu District, Ningbo. It is a large-scale comprehensive pump company integrating R&D, production and sales of high-pressure plunger pumps. Since its inception, with excellent product quality, accurate market positioning, scientific marketing concept and perfect supporting system, the company successfully set up a quality brand!
The company has more than 3,500 square meters of standard workshops and advanced production processing equipment, including an industrial pump test center and a variety of high precision testing instruments, etc. The company actively introduces high-end German technology and insists on combining product R&D introduction with independent R&D. Its business covers one-stop services such as high-pressure plunger pump production, sales, maintenance, and customization, and is widely used in petroleum, chemical industry, steel, shipbuilding, hydropower, sugar, coal, mining, construction, automobile manufacturing, municipal sanitation, pipeline pressure testing, high-pressure water jet and other fields. At present, the company has carried out strategic cooperation with well-known German industrial pump manufacturers in terms of technical exchanges and product applications. Relying on strong technical strength, high-end production equipment, scientific management methods, and professional quality system, the company has established long-term and stable business relationships with many customers and has won the trust and praise.
The company has a modern office environment and advanced and first-class office facilities. Based on the concept of precise control and customer service, it has quickly gathered a large number of high-quality and high-level talents to join, and has formed a professional R&D, production, operation, sales, maintenance and other core departments. With solid industry theory and experience, the company has focuses on customers, establishes a complete service system, strives to provide customers with the fastest and most efficient products and services, and creates a good brand image.
In the future, we will continue to adhere to the business philosophy of "quality first, reputation first, customer first, service people-oriented", the hard service tenet of "quality control, high efficiency", the leading concept of "fast, efficient, professional and perfect" and the principle of "excellence, stability and development", and take economic benefits as the center. With the support of technological progress, Ningbo Brilliant Water Technology Co., Ltd. will strive to develop into a world-class pump supplier with high technological content, good product quality and excellent personnel quality.

Certification

Products and services trusted by users around the world

Industry knowledge

A brief introdction of High Pressure Plunger Pumps
High-pressure plunger pumps are industrial machines that are designed to create high pressure by using a reciprocating plunger to pressurize fluids. They are commonly used in various applications such as pressure washing, water treatment, oil and gas industry, mining, and other industrial processes that require high pressure and flow rate.
The plunger pump operates by using a plunger that moves back and forth inside a cylinder. The plunger is driven by a motor or an engine, and as it moves forward, it creates a vacuum that pulls in fluid through an inlet valve. As the plunger moves backward, the inlet valve closes and the fluid is forced out through an outlet valve, creating high pressure.
The design of high-pressure plunger pumps allows them to generate very high pressures, typically ranging from 1000 to 10,000 PSI (pounds per square inch). They are capable of handling a wide range of fluids including water, oil, and chemicals.
One of the advantages of using high-pressure plunger pumps is their ability to provide high pressure with a relatively small footprint. They are also highly efficient and can be designed to meet specific application requirements. However, they can be quite expensive and require regular maintenance to ensure they operate correctly.
Overall, high-pressure plunger pumps are an important tool in various industries where high-pressure fluid pumping is required. Their ability to generate high pressure and flow rate makes them an essential component of many industrial processes.
How to maintain High Pressure Plunger Pumps?
High-pressure plunger pumps are used in various industrial applications such as pressure washing, water jet cutting, and oil and gas production. Proper maintenance is crucial for ensuring their longevity and optimal performance. Here are some steps to maintain high-pressure plunger pumps:
Follow the manufacturer's instructions: Read the manufacturer's manual carefully and follow the maintenance instructions provided in it.
Check the oil level: Check the oil level regularly and top it up as required. Use the recommended oil type and change it as per the manufacturer's recommendation.
Clean the filters: Clean the inlet and outlet filters regularly. Dirty filters can cause low pressure and damage to the pump.
Inspect the seals: Check the seals for wear and tear. Replace them if necessary to prevent leaks.
Lubricate the pump: Lubricate the pump as per the manufacturer's recommendations. Use the recommended lubricant and follow the instructions for application.
Check the valves: Inspect the inlet and outlet valves for wear and tear. Replace them if necessary to maintain optimal performance.
Monitor the pressure: Monitor the pressure regularly to ensure that the pump is working at the desired pressure level.
Keep the pump clean: Keep the pump clean and free from dirt and debris. Use a soft cloth to wipe down the pump regularly.
Store the pump properly: If the pump is not in use, store it in a dry, cool, and clean place. Follow the manufacturer's instructions for long-term storage.
By following these steps, you can ensure that your high-pressure plunger pump remains in good working condition and operates optimally for an extended period.
