Stainless Steel Plunger pumps

stainless steel high pressure triplex plunger pumps MANUFACTURERS

For high-pressure processes in various industries, we provide an efficient and cost-saving alternative to our diaphragm pump series: The brilliant plunger pump is a high-performance and versatile plunger pump for high-pressure applications in various industries.

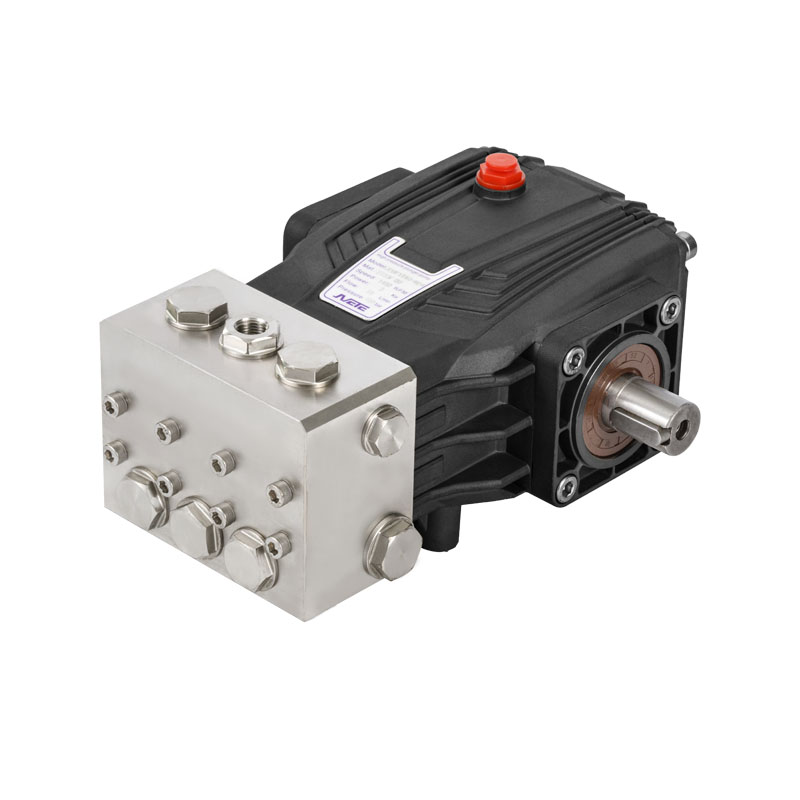

JPBF 1450RPM N VERSION 24MM SOLID SHAFT

JPBF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPBF-N0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPBF-N0810 8 2.1 100 1450 2 1.5 1450 18 7
JPBF-N1110 11 2.9 100 1450 3 2.2 1450 18 10
JPBF-N1310 13 3.4 100 1450 4 2.2 1450 18 14
JPBF-N1510 15 4 100 1450 4 3 1450 18 14

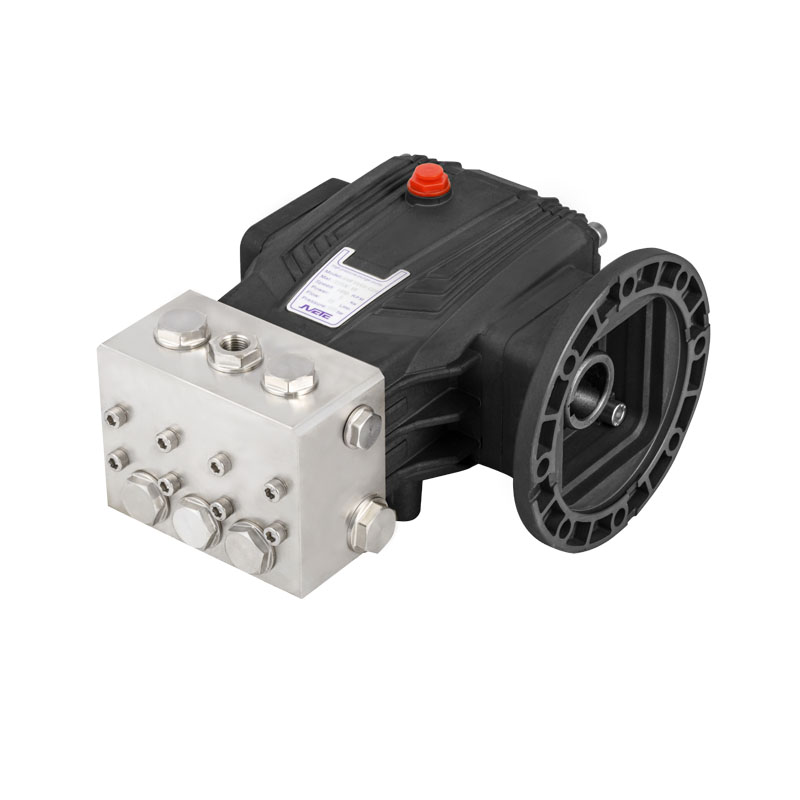

JPBF 1450RPM C VERSION 24MM/28MM HOLLOW SHAFT

JPBF 1450RPM C VERSION 24MM/28MM HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPBF-C0510 5 1.3 100 1450 1.5 1.1 1450 18 5
JPBF-C0810 8 2.1 100 1450 2 1.5 1450 18 7
JPBF-C1110 11 2.9 100 1450 3 2.2 1450 18 10
JPBF-C1310 13 3.4 100 1450 4 2.2 1450 18 12
JPBF-C1510 15 4 100 1450 4 3 1450 18 14
JPCF 1450RPM N VERSION 24MM SOLID SHAFT

JPCF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPCF-N1510 15 4 100 1450 3 4 1450 18 14
JPCF-N1910 19 5.02 100 1450 5.5 4 1450 20 14
JPCF-N2310 23 6.08 100 1450 5.5 4 1450 22 14
JPCF-N3010 30 7.9 100 1450 7.5 5.5 1450 25 14
JPCF-N3510 35 9.25 100 1450 9 7.5 1450 25 16.5
JPCF 1450RPM C VERSION 28MM HOLLOW SHAFT

JPCF 1450RPM C VERSION 28MM HOLLOW SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPCF-C1510 15 4 100 1450 4 3 1450 18 14
JPCF-C1910 19 5.02 100 1450 5.5 4 1450 20 14
JPCF-C2310 23 6.08 100 1450 5.5 4 1450 22 14
JPCF-C3010 30 7.9 100 1450 7.5 5.5 1450 25 14
JPCF-C3510 35 9.5 100 1450 9 7.5 1450 25 16.5
JPDF 1450RPM N VERSION 24MM SOLID SHAFT

JPDF 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDF-N4010 40 10.6 100 1450 10 7.5 1450 28 15
JPDF-N5610 56 14.8 100 1450 15 11 1450 28 21
JPDF-N7010 70 18.5 100 1450 20 15 1450 32 21
JPEF

JPEF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPEF32 96 25.4 180 2610 40 30 1450 32 27.5
JPEF36 121 32 130 1885 40 30 1450 36 27.5
JPEF40 150 39.6 100 1450 40 30 1450 40 27.5
JPFF

JPFF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPFF32 120 31.7 160 2320 50 37 1000 32 50
JPFF36 152 40.1 130 1885 50 37 1000 36 50
JPFF40 188 49.6 110 1595 50 37 1000 40 50
JPGF

JPGF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPGF32 168 44.9 250 3625 113 83 1000 32 70
JPGF36 213 56.2 200 2900 113 83 1000 36 70
JPGF40 263 69.5 160 2320 113 83 1000 40 70
JPGF45 333 88 100 1450 85 65 1000 45 70
JPGF50 330 87.2 130 1885 114 84 1000 50 70
JPGF55 399 105.4 100 1450 108 79 1000 52 70
JPGWF

JPGWF

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPGWF32 135 35.7 300 4350 110 80 1500-1:1.8 32 70
JPGWF36 171 45.2 240 3480 110 80 1500-1:1.8 36 70
JPGWF40 211 55.7 210 3045 120 87 1500-1:1.8 40 70
JPGWF45 267 70.5 155 2248 112 81 1500--1:1.83 45 70
JPGWF50 330 87.2 125 1813 112 81 1500--1:1.83 50 70
JPGWF55 399 105.4 100 1450 108 79 1500--1:1.83 52 70
Leading Manufacturer of High Pressure Water Jet Products

Ningbo Brilliant

Ningbo Brilliant Machinery Co., Ltd. was founded in 2019, located in Haishu District, Ningbo. It is a large-scale comprehensive pump company integrating R&D, production and sales of high-pressure plunger pumps. Since its inception, with excellent product quality, accurate market positioning, scientific marketing concept and perfect supporting system, the company successfully set up a quality brand!
The company has more than 3,500 square meters of standard workshops and advanced production processing equipment, including an industrial pump test center and a variety of high precision testing instruments, etc. The company actively introduces high-end German technology and insists on combining product R&D introduction with independent R&D. Its business covers one-stop services such as high-pressure plunger pump production, sales, maintenance, and customization, and is widely used in petroleum, chemical industry, steel, shipbuilding, hydropower, sugar, coal, mining, construction, automobile manufacturing, municipal sanitation, pipeline pressure testing, high-pressure water jet and other fields. At present, the company has carried out strategic cooperation with well-known German industrial pump manufacturers in terms of technical exchanges and product applications. Relying on strong technical strength, high-end production equipment, scientific management methods, and professional quality system, the company has established long-term and stable business relationships with many customers and has won the trust and praise.
The company has a modern office environment and advanced and first-class office facilities. Based on the concept of precise control and customer service, it has quickly gathered a large number of high-quality and high-level talents to join, and has formed a professional R&D, production, operation, sales, maintenance and other core departments. With solid industry theory and experience, the company has focuses on customers, establishes a complete service system, strives to provide customers with the fastest and most efficient products and services, and creates a good brand image.
In the future, we will continue to adhere to the business philosophy of "quality first, reputation first, customer first, service people-oriented", the hard service tenet of "quality control, high efficiency", the leading concept of "fast, efficient, professional and perfect" and the principle of "excellence, stability and development", and take economic benefits as the center. With the support of technological progress, Ningbo Brilliant Water Technology Co., Ltd. will strive to develop into a world-class pump supplier with high technological content, good product quality and excellent personnel quality.

Certification

Products and services trusted by users around the world

Industry knowledge

What is Stainless Steel Plunger pumps?
Stainless steel plunger pumps are a type of positive displacement pump that use a reciprocating plunger to move fluid through a cylindrical chamber. These pumps are constructed using stainless steel components, which provide durability, corrosion resistance, and high-pressure handling capabilities.
The plunger is typically made of a hard-wearing ceramic material, such as alumina or zirconia, which ensures that the pump can handle a wide range of fluids, including abrasive, viscous, or corrosive substances. The pump's high-pressure capabilities make it suitable for use in a variety of industrial applications, such as water treatment, chemical processing, and oil and gas production.
Stainless steel plunger pumps are available in a range of configurations, including single and multi-plunger designs, and can be operated using a variety of power sources, such as electric motors or diesel engines. They are often used in applications that require high pressure and flow rates, such as in oil and gas well stimulation or high-pressure water jetting.
What is product advantages of Stainless Steel Plunger pumps?
Stainless steel plunger pumps offer several advantages, including:
Durability: Stainless steel is a strong and durable material that can withstand harsh conditions, making it ideal for use in pumps that are subject to wear and tear.
Corrosion resistance: Stainless steel is highly resistant to corrosion, which means that it can withstand exposure to chemicals and other corrosive substances without becoming damaged.
High temperature resistance: Stainless steel can also withstand high temperatures, which makes it ideal for use in pumps that are used in high-temperature applications.
Hygienic: Stainless steel is a hygienic material that is easy to clean and sanitize, making it ideal for use in applications where cleanliness is essential, such as in food and beverage processing.
Versatility: Stainless steel plunger pumps are suitable for a wide range of applications, including chemical processing, water treatment, food processing, and many other industries.
Overall, stainless steel plunger pumps offer a range of benefits that make them an excellent choice for many different applications, especially those that require durability, resistance to corrosion, and high temperatures, and a high level of hygiene.
