Industrial Plunger Pumps

Industrial high pressure plunger pumps MANUFACTURERS

For high-pressure processes in various industries, we provide an efficient and cost-saving alternative to our diaphragm pump series: The brilliant plunger pump is a high-performance and versatile plunger pump for high-pressure applications in various industries.

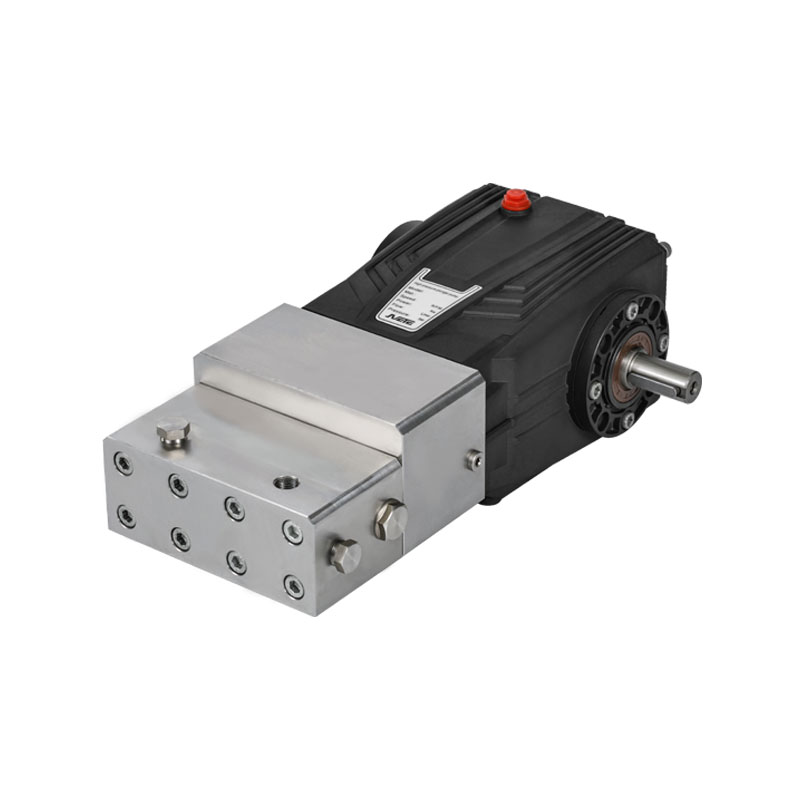

JPDT 1450RPM N VERSION 24MM SOLID SHAFT

JPDT 1450RPM N VERSION 24MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPDT07150 7 1.85 1500 21750 30 18.5 1450 10 21
JPDT10120 10 2.64 1200 17400 30 22 1450 12 21
JPDT1880 18 4.8 800 11600 36 30 1450 16 21

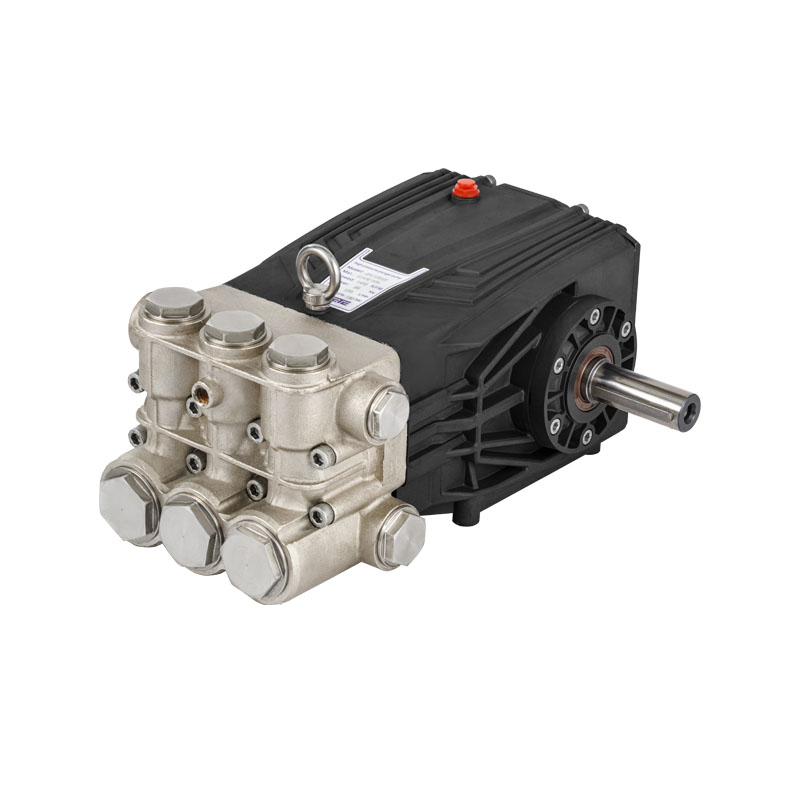

JPE 1450RPM N VERSION 30MM SOLID SHAFT

JPE 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPE32 96 25.4 180 2610 40 30 1450 32 27.5
JPE36 121 32 130 1885 40 30 1450 36 27.5
JPE40 150 39.6 100 1450 40 30 1450 40 27.5
JPE45 131 34.6 100 1450 30 26 1000 45 27.5
JPE45 118 31.2 100 1450 28 24 900 45 27.5
JPE45 105 27.7 100 1450 26 22 800 45 27.5
KT

KT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
KT32 96 25.4 180 2610 40 30 1450 32 27.5
KT36 121 32 130 1885 40 30 1450 36 27.5
KT40 150 39.6 100 1450 40 30 1450 40 27.5
KT45 131 34.6 100 1450 30 26 1000 45 27.5
KT45 105 27.7 100 1450 26 22 800 45 27.5
KT45 118 31.2 100 1450 28 24 900 45 27.5

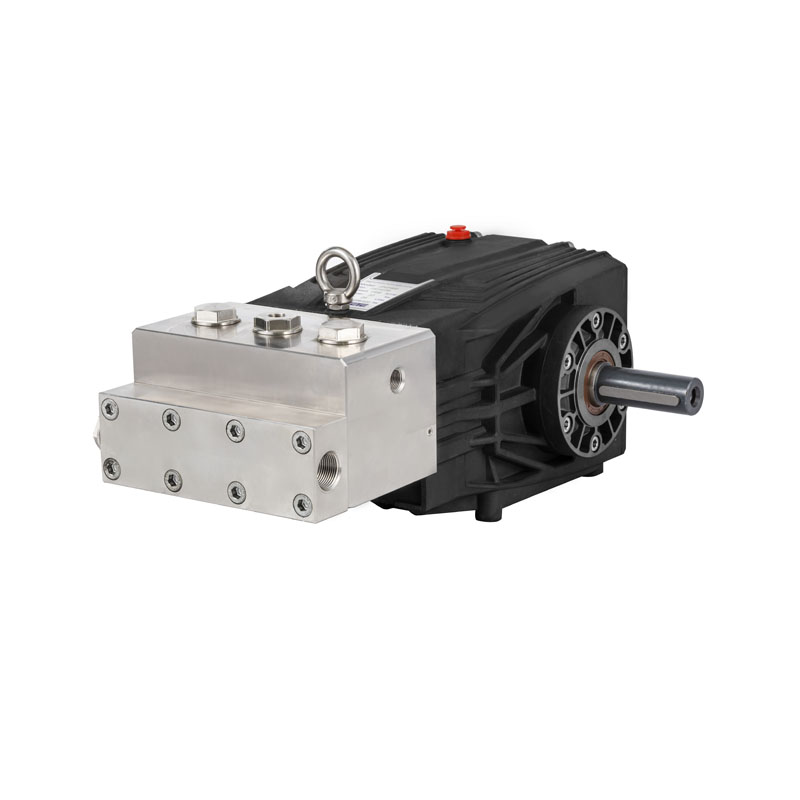

JPES 1450RPM N VERSION 30MM SOLID SHAFT

JPES 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPES2470 24 6.3 700 10150 50 37 1450 16 27.5
JPES3060 30 7.9 600 8700 50 37 1450 18 27.5
JPES3750 37 9.9 500 7250 50 37 1450 20 27.5
JPES4540 45 11.9 400 5800 50 37 1450 22 27.5
JPES 1450RPM N VERSION 30MM SOLID SHAFT

JPES 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPES5830 58 15.3 300 4350 40 30 1450 25 27.5
JPES7328 73 19.3 280 4060 50 37 1450 28 27.5
JPES8520 85 22.4 200 2900 40 30 1450 30 27.5
FLS

FLS

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
FLS18 30 8.1 600 8700 48 35.5 800 18 50
FLS18 36 9.52 600 8700 55 45 1000 18 50
FLS20 47 12.4 400 5800 50 37 1000 20 50
FLS22 45 12 400 5800 48 37 800 22 50
FLS22 57 15 350 5075 50 37 1000 22 50
FLS25 75 19.3 280 4060 50 37 1000 25 50
JPET 1450RPM N VERSION 30MM SOLID SHAFT

JPET 1450RPM N VERSION 30MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPET09150 9 2.38 1500 21750 30 22 1450 10 27.5
JPET13150 13.5 3.57 1500 21750 40 30 1450 12 27.5
JPET18100 18 4.76 1000 14500 40 30 1450 14 27.5
JPET2490 24 6.34 900 13050 50 37 1450 16 27.5
JPET3075 30 7.94 750 10875 50 37 1450 18 27.5
FLT

FLT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
FLT12 17 4.5 1500 21750 55 45 1000 12 50
FLT14 23 6.08 1000 14500 55 45 1000 14 50
FLT16 30 8.1 800 11600 55 45 1000 16 50
GWT

GWT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
GWT12 17.5 4.63 2000 29000 101 74.5 1500 12 70
GWT14 26 6.9 1500 21750 101 74.5 1500 14 70
GWT16 34 9 1200 17400 106 78 1500 16 70
GWT18 43 11.4 900 13050 101 74.5 1500 18 70
GWT20 53 14 750 10875 103 76 1500 20 70
GWT22 64 16.9 600 8700 100 73 1500 22 70
GWT25 76 20.1 500 7250 110 80 1500 25 70
JPF 1000RPM N VERSION 40MM SOLID SHAFT

JPF 1000RPM N VERSION 40MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPF32 120 31.7 160 2320 50 37 1000 32 50
JPF36 152 40.1 130 1885 50 37 1000 36 50
JPF40 188 49.6 110 1595 50 37 1000 40 50
JPF45 238 63.1 80 1160 50 37 1000 45 50
JPKF 1000RPM N VERSION 40MM SOLID SHAFT

JPKF 1000RPM N VERSION 40MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPKF28 92 24.3 210 3045 50 37 1000 28 50
JPKF30 106 28 200 2900 50 37 1000 30 50
JPKF36 122 32.2 160 2320 50 37 800 36 50
JPKF36 137 36.2 140 2030 50 37 900 36 50
JPKF36 152 40.1 130 1885 50 37 1000 36 50
JPKF40 188 49.6 110 1595 50 37 1000 40 50
JPKF45 238 63.1 80 1160 50 37 1000 40 50
PFH

PFH

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
PFH28

111

29.3

250

3625

75

55

1500

28

50

PFH28

112

29.6

250

3625

75

55

1800

28

50

PFH30

76

20.1

500

7250

110

80

1500

25

70

PFH30

76

20.1

500

7250

110

80

1500

25

70

PFH36

76

20.1

500

7250

110

80

1500

25

70

PFH36

76

20.1

500

7250

110

80

1500

25

70

PFH40

76

20.1

500

7250

110

80

1500

25

70

PFH40

76

20.1

500

7250

110

80

1500

25

70

JPMW  N VERSION 50MM SOLID SHAFT

JPMW N VERSION 50MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPMW32 135 35.7 300 4350 110 80 1500/1800/2200 32 70
JPMW36 171 45.2 240 2480 111 80 1500/1800/2200 36 70
JPMW40 211 55.7 210 3045 120 87 1500/1800/2200 40 70
JPMW45 267 70.5 155 2248 112 80 1500/1800/2200 45 70
JPMW50 330 87.2 125 1813 112 82 1500/1800/2200 50 70
JPMW55 399 105.4 100 1450 108 79 1500/1800/2200 52 70
JPMV N VERSION 50MM SOLID SHAFT

JPMV N VERSION 50MM SOLID SHAFT

Model Flow Pressure Power Speed Plunger Dia Stroke
L/min gpm Bar psi hp kw rpm mm mm
JPMV32 168 44.9 250 3625 113 83 1000 32 70
JPMV36 213 56.2 200 2900 113 83 1000 36 70
JPMV40 263 69.5 160 2320 113 83 1000 40 70
JPMV45 333 88 100 1450 85 65 1000 45 70
JPMV50 330 87.2 130 1885 114 84 1000 50 70
JPMV55 399 105.4 100 1450 108 79 1000 52 70
Leading Manufacturer of High Pressure Water Jet Products

Ningbo Brilliant

Ningbo Brilliant Machinery Co., Ltd. was founded in 2019, located in Haishu District, Ningbo. It is a large-scale comprehensive pump company integrating R&D, production and sales of high-pressure plunger pumps. Since its inception, with excellent product quality, accurate market positioning, scientific marketing concept and perfect supporting system, the company successfully set up a quality brand!
The company has more than 3,500 square meters of standard workshops and advanced production processing equipment, including an industrial pump test center and a variety of high precision testing instruments, etc. The company actively introduces high-end German technology and insists on combining product R&D introduction with independent R&D. Its business covers one-stop services such as high-pressure plunger pump production, sales, maintenance, and customization, and is widely used in petroleum, chemical industry, steel, shipbuilding, hydropower, sugar, coal, mining, construction, automobile manufacturing, municipal sanitation, pipeline pressure testing, high-pressure water jet and other fields. At present, the company has carried out strategic cooperation with well-known German industrial pump manufacturers in terms of technical exchanges and product applications. Relying on strong technical strength, high-end production equipment, scientific management methods, and professional quality system, the company has established long-term and stable business relationships with many customers and has won the trust and praise.
The company has a modern office environment and advanced and first-class office facilities. Based on the concept of precise control and customer service, it has quickly gathered a large number of high-quality and high-level talents to join, and has formed a professional R&D, production, operation, sales, maintenance and other core departments. With solid industry theory and experience, the company has focuses on customers, establishes a complete service system, strives to provide customers with the fastest and most efficient products and services, and creates a good brand image.
In the future, we will continue to adhere to the business philosophy of "quality first, reputation first, customer first, service people-oriented", the hard service tenet of "quality control, high efficiency", the leading concept of "fast, efficient, professional and perfect" and the principle of "excellence, stability and development", and take economic benefits as the center. With the support of technological progress, Ningbo Brilliant Water Technology Co., Ltd. will strive to develop into a world-class pump supplier with high technological content, good product quality and excellent personnel quality.

Certification

Products and services trusted by users around the world

Industry knowledge

What is High Pressure Industrial Plunger Pumps?
High-pressure industrial plunger pumps are mechanical devices used to generate high-pressure flow of liquids or gases in industrial settings. These pumps typically use a reciprocating plunger to pressurize and move the fluid through a series of valves and chambers.
They are commonly used in a variety of applications such as water jetting, pressure washing, oil and gas processing, chemical processing, and many other industrial processes that require high-pressure pumping.
High-pressure industrial plunger pumps are capable of generating pressures ranging from a few hundred psi to over 40,000 psi, depending on the application and the specific model of the pump. They are often chosen over other types of pumps because of their ability to handle high-pressure liquids and gases efficiently and reliably.
What is product advantages of High Pressure Industrial Plunger Pumps?
High Pressure Industrial Plunger Pumps offer several advantages over other types of pumps, including:
Versatility: Plunger pumps are versatile and can be used in a wide range of applications. They are often used in agriculture, construction, and manufacturing as well as in the oil and gas industry.
Durability: Plunger pumps are designed to be durable and long-lasting, even in harsh environments. They are built with high-quality materials and are designed to withstand extreme temperatures, pressure, and corrosive materials.
Energy efficiency: Plunger pumps are energy-efficient and require less power than other types of pumps. They are designed to operate at high pressure, which means they can deliver more water or other fluids with less energy.
Low maintenance: Plunger pumps are easy to maintain and require minimal maintenance. They have few moving parts, which means they are less prone to wear and tear. In addition, they are designed to be easy to service, which reduces downtime and maintenance costs.
Overall, High Pressure Industrial Plunger Pumps offer a range of advantages that make them ideal for a variety of industrial applications. They are versatile, durable, energy-efficient, and require minimal maintenance, which makes them an excellent choice for many industries.
